Detail Drawings

Interior Design • SCAD Atlanta • Project 11

This collection of detailed drawings highlights the technical precision behind each design. They explore construction methods, material connections, and the small moments that bring a space together, showing how form, function, and craftsmanship meet at the finer scale.

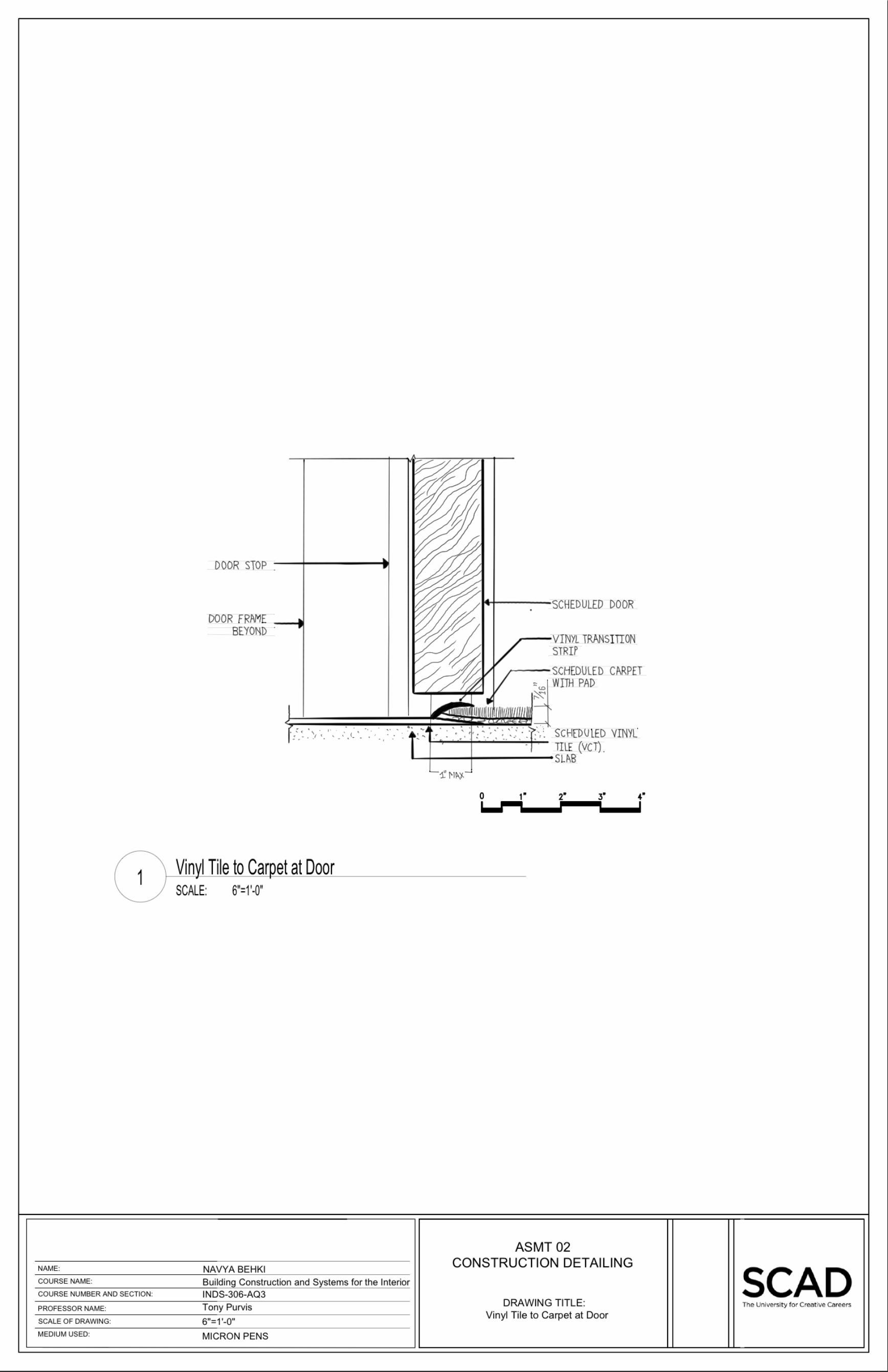

Detail Drawings — 1 — Vinyl tile to carpet at door — 1 — Vinyl tile to carpet at door

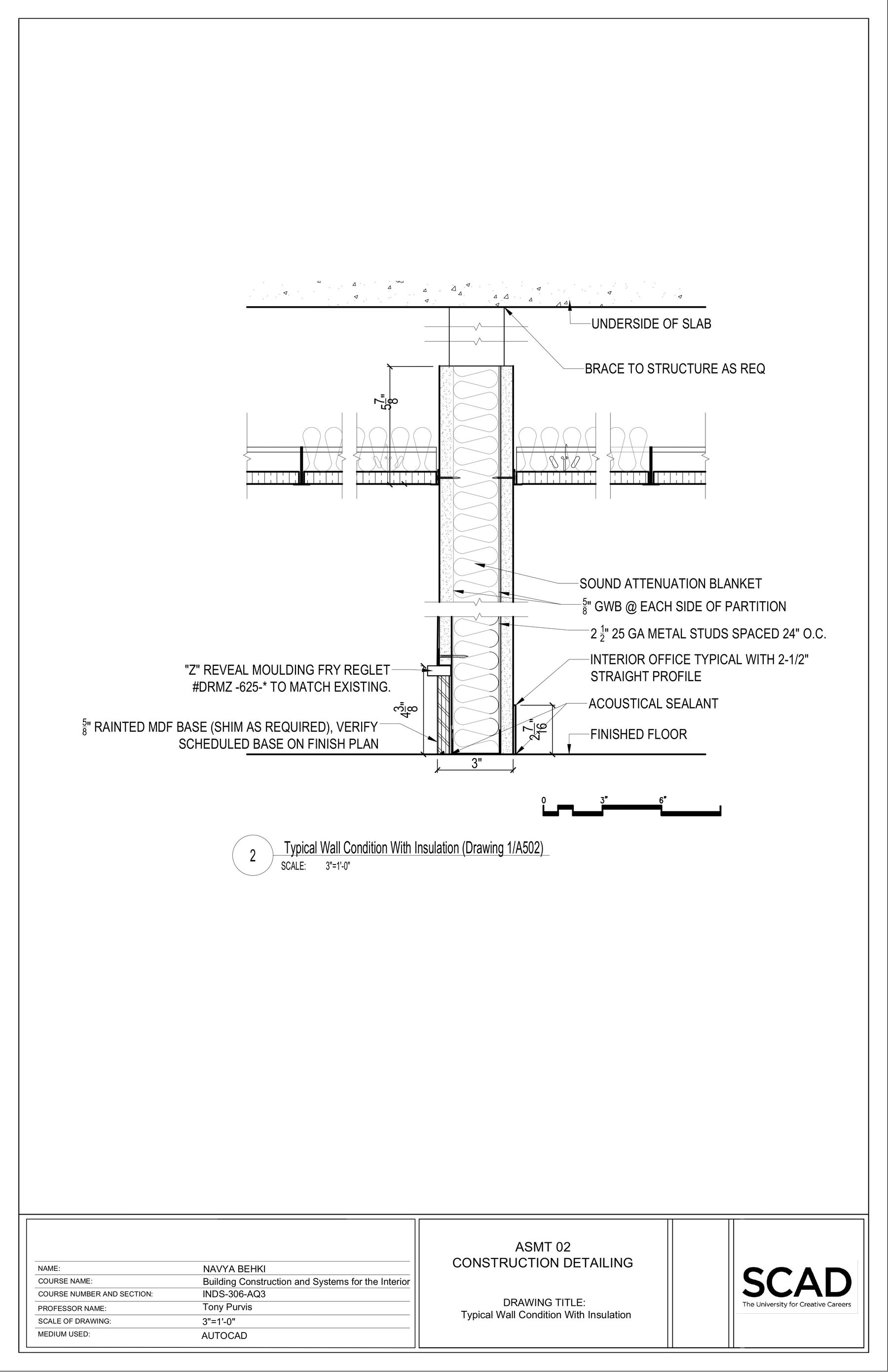

Detail Drawings — 2 — Typical wall condition with insulation — 2 — Typical wall condition with insulation

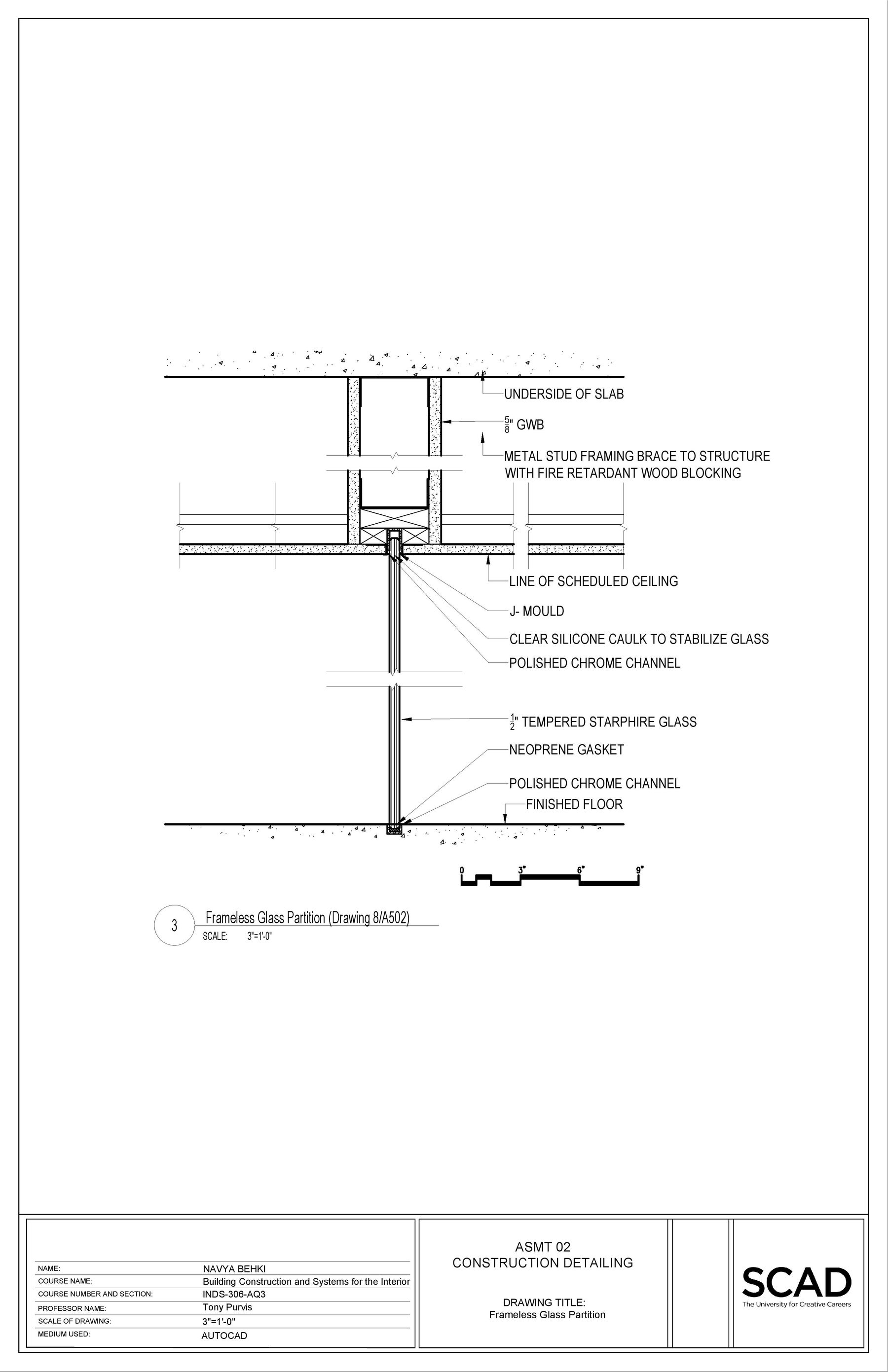

Detail Drawings — 3 — Frameless glass partition — 3 — Frameless glass partition

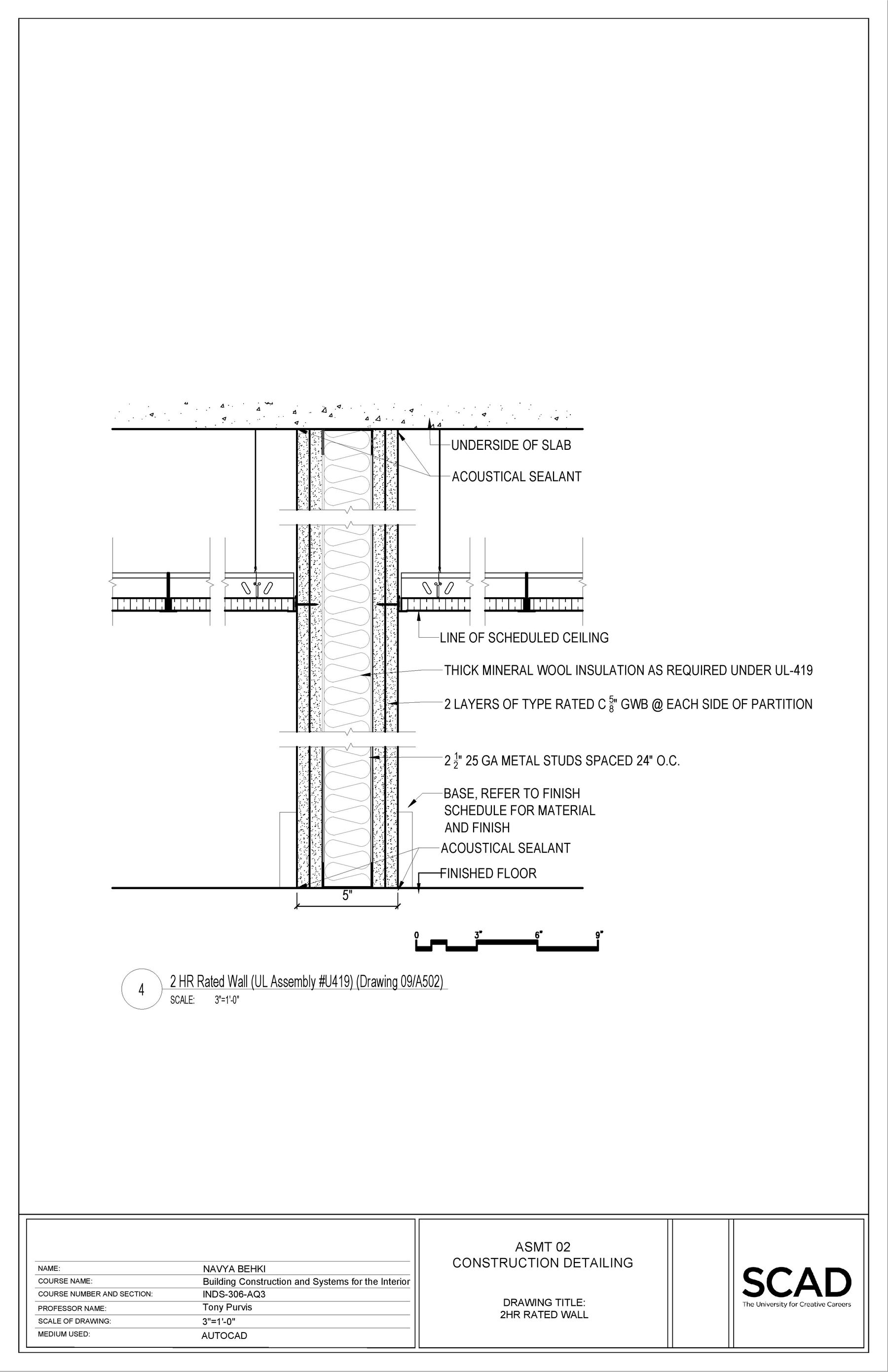

Detail Drawings — 4 — 2HR rated wall — 4 — 2HR rated wall

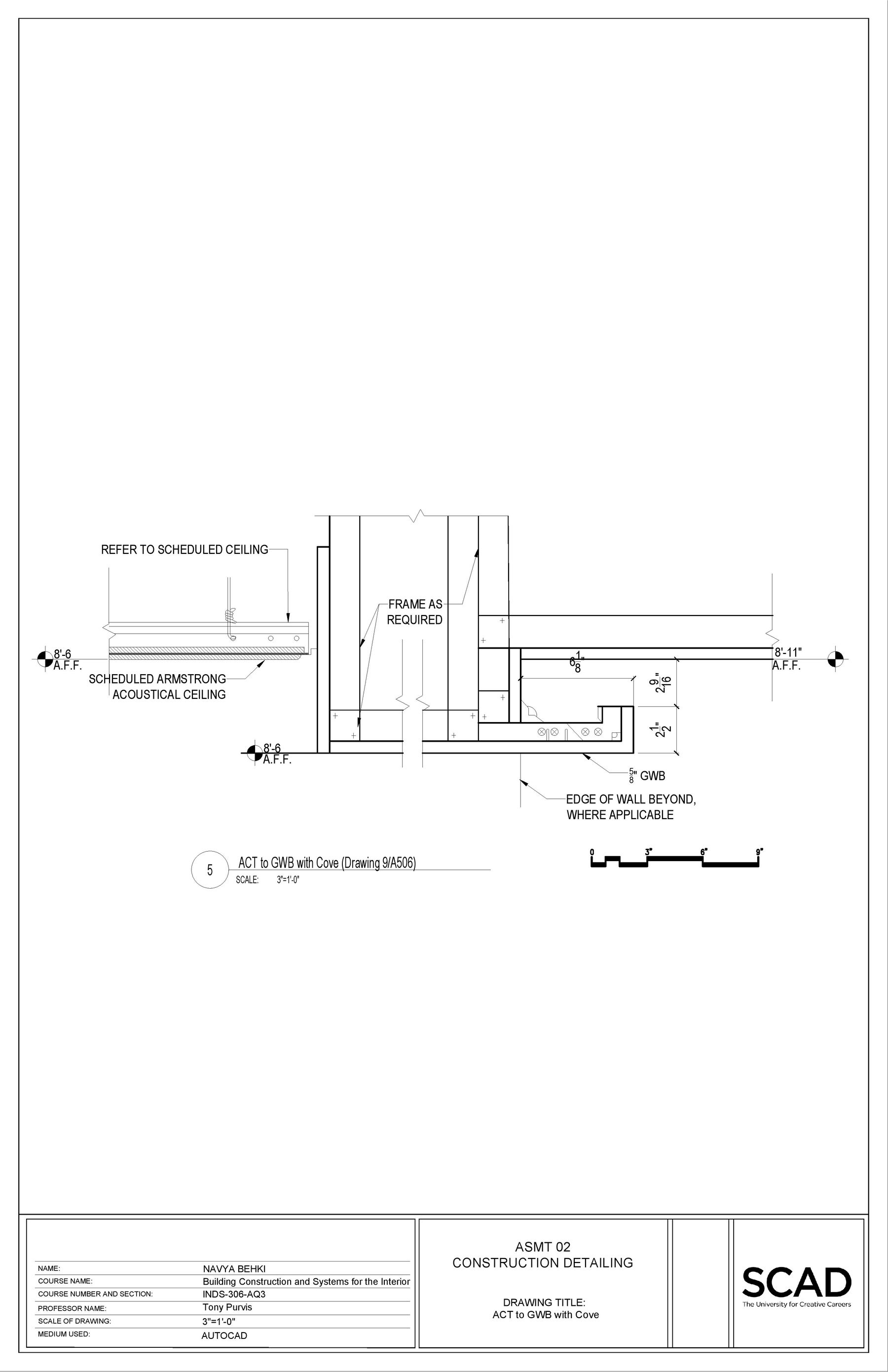

Detail Drawings — 5 — ACT to GWB with cove — 5 — ACT to GWB with cove

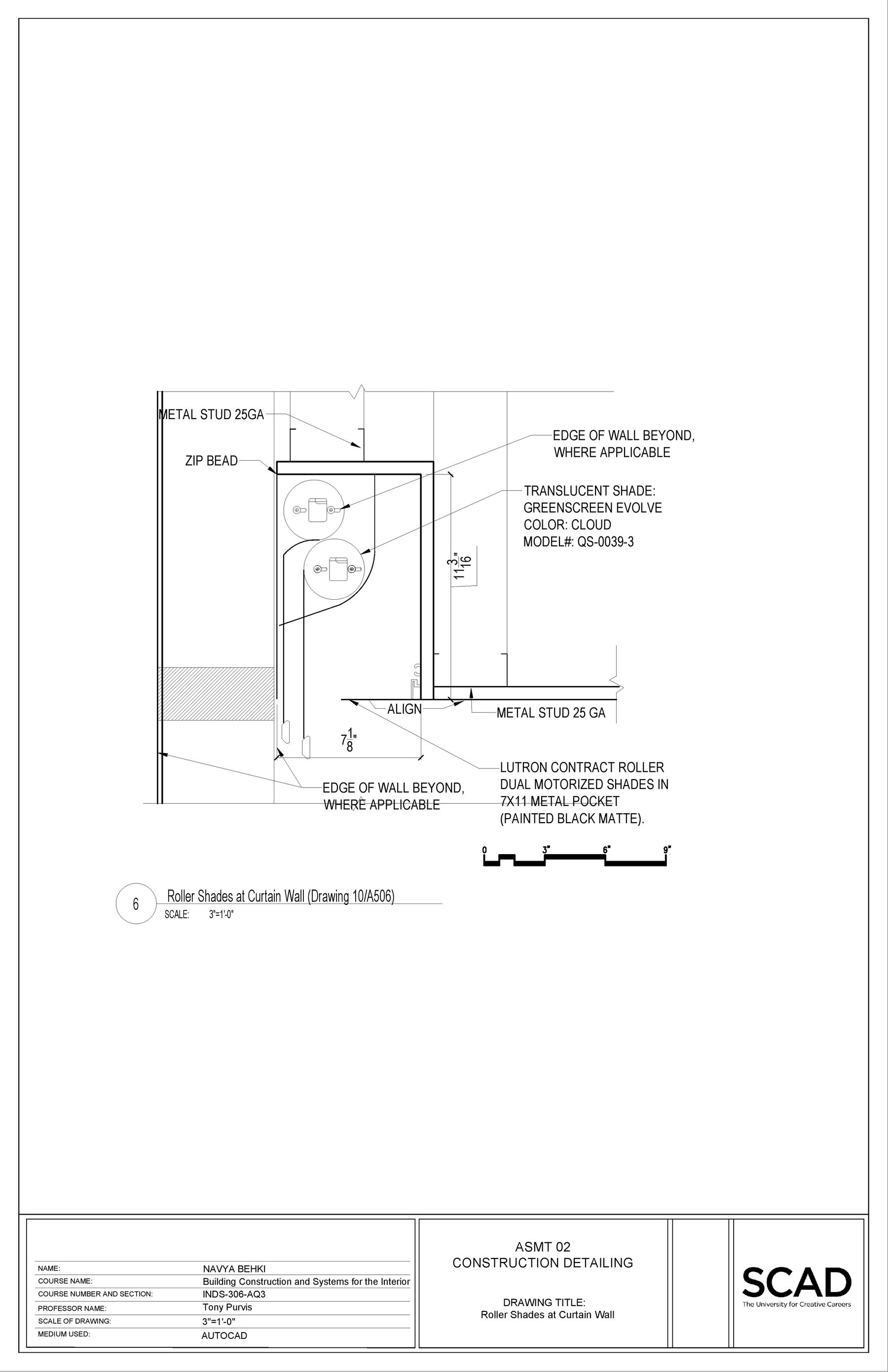

Detail Drawings — 6 — Roller shades at curtain wall — 6 — Roller shades at curtain wall

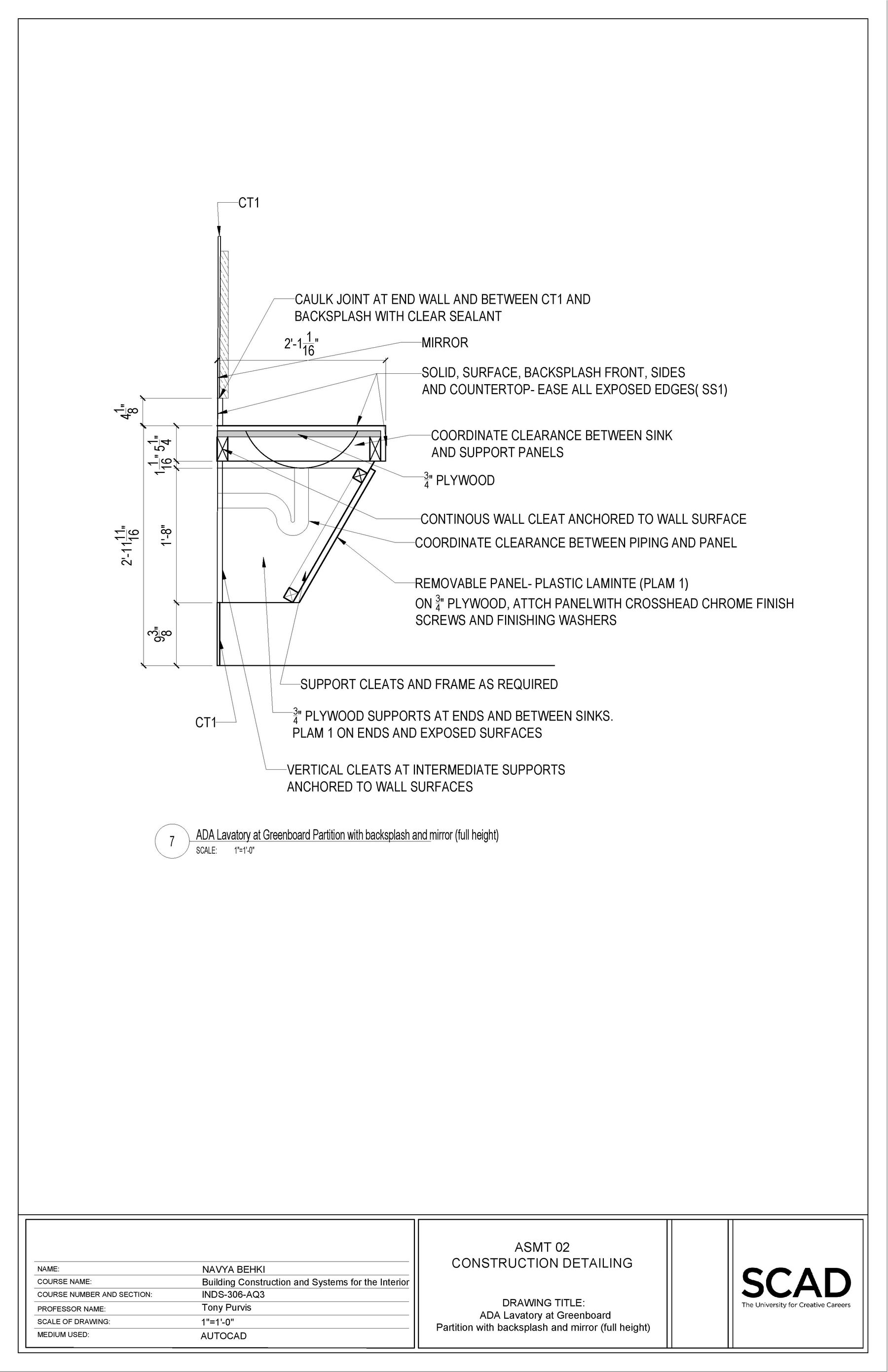

Detail Drawings — 7 — ADA lavatory at downstand partition — 7 — ADA lavatory at downstand partition

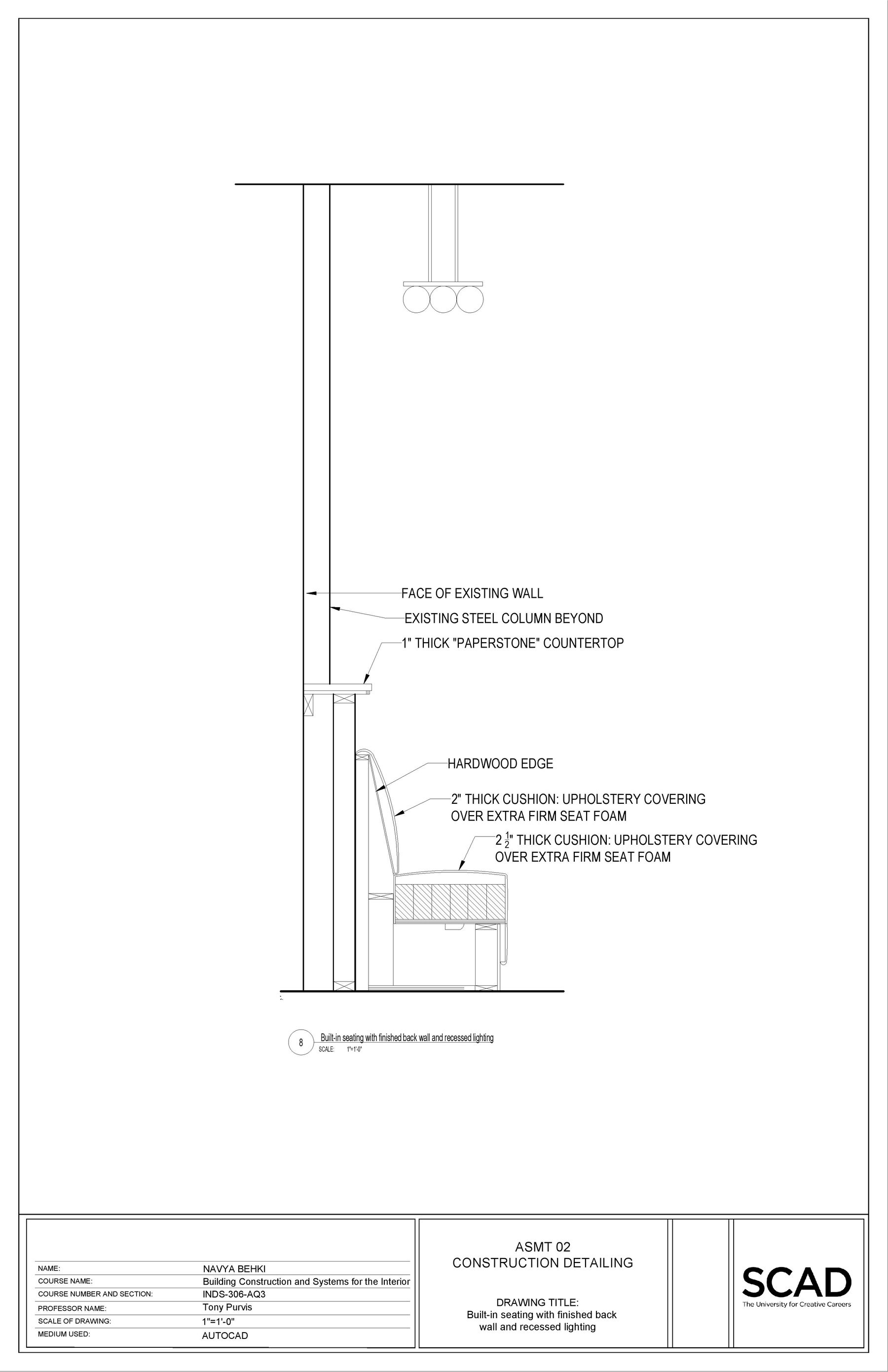

Detail Drawings — 8 — Built-in seating — 8 — Built-in seating
